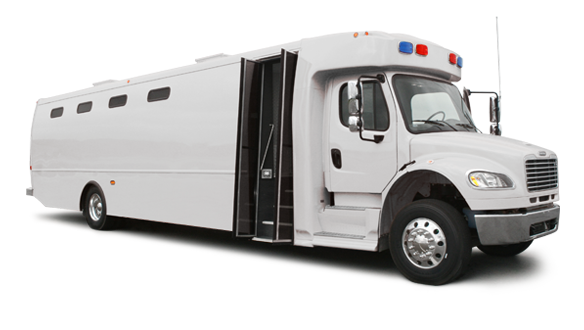

Specialty Policing Buses by TESCO - Prison Transport Heavy Duty

Prisoner Transport Advantages

Waterless Restrooms
Under-floor belly storage boxes

5/8" Advantech sub-floor
Safer alternative to the 15 passenger van

Standard Options

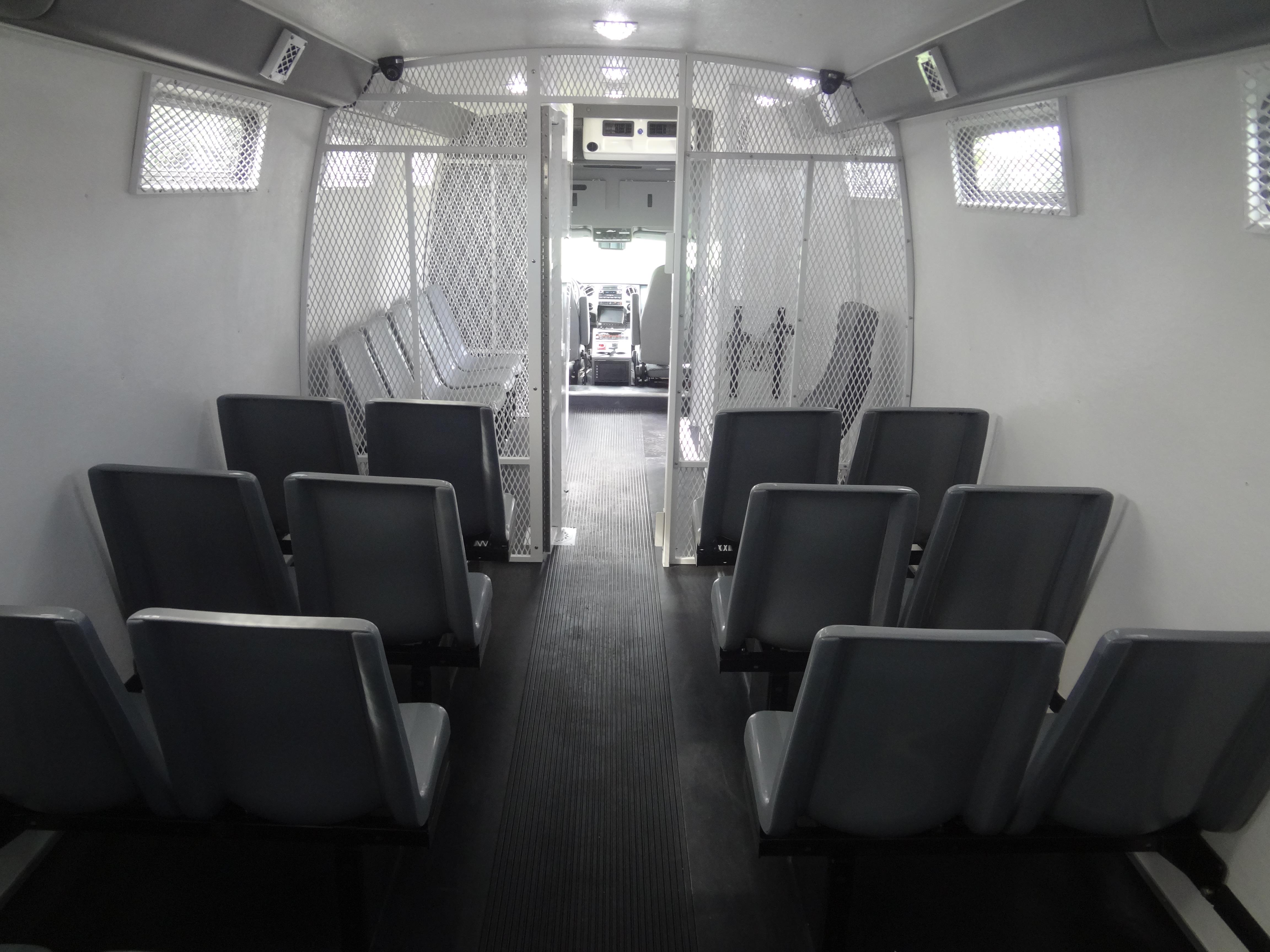

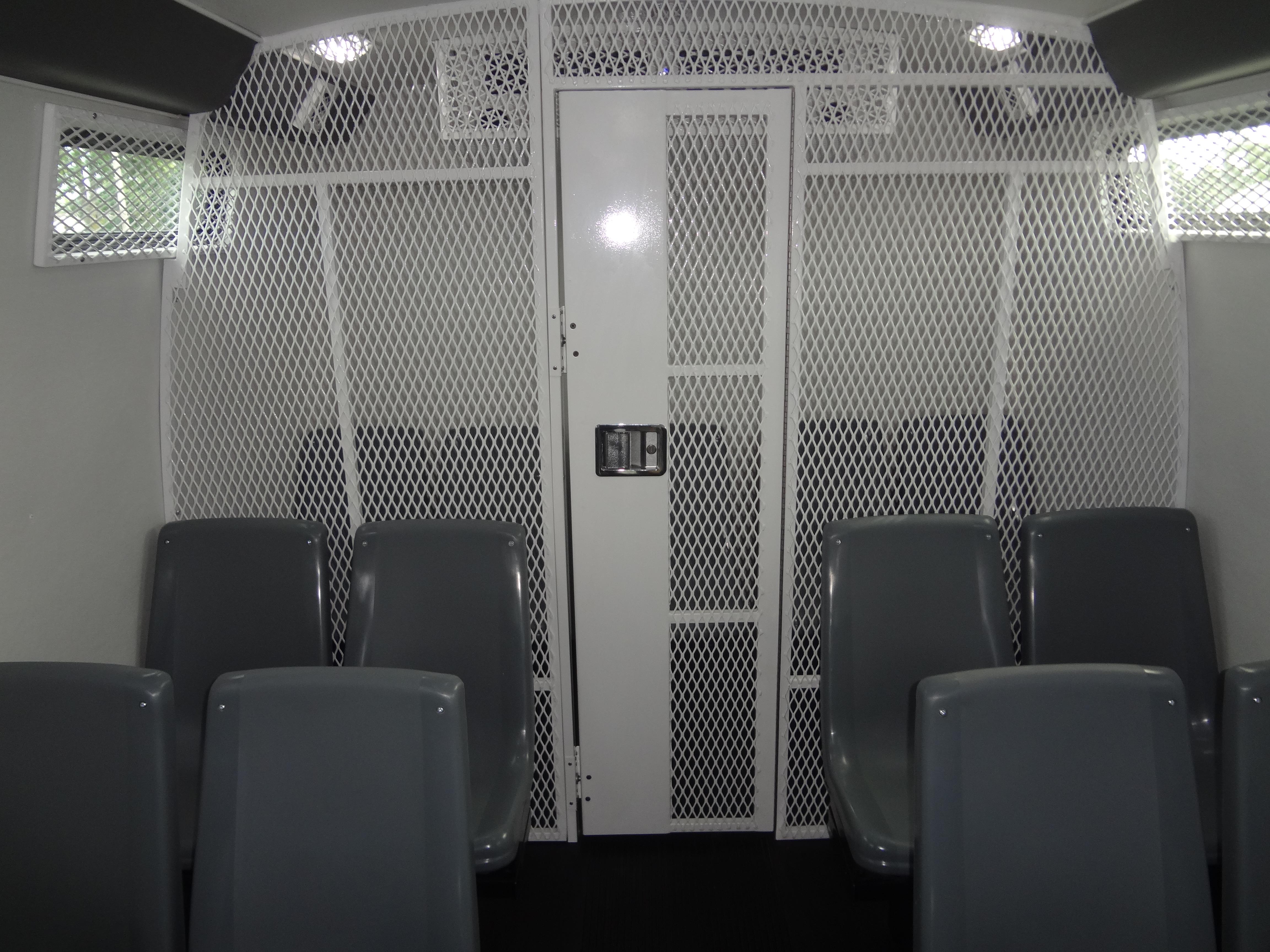

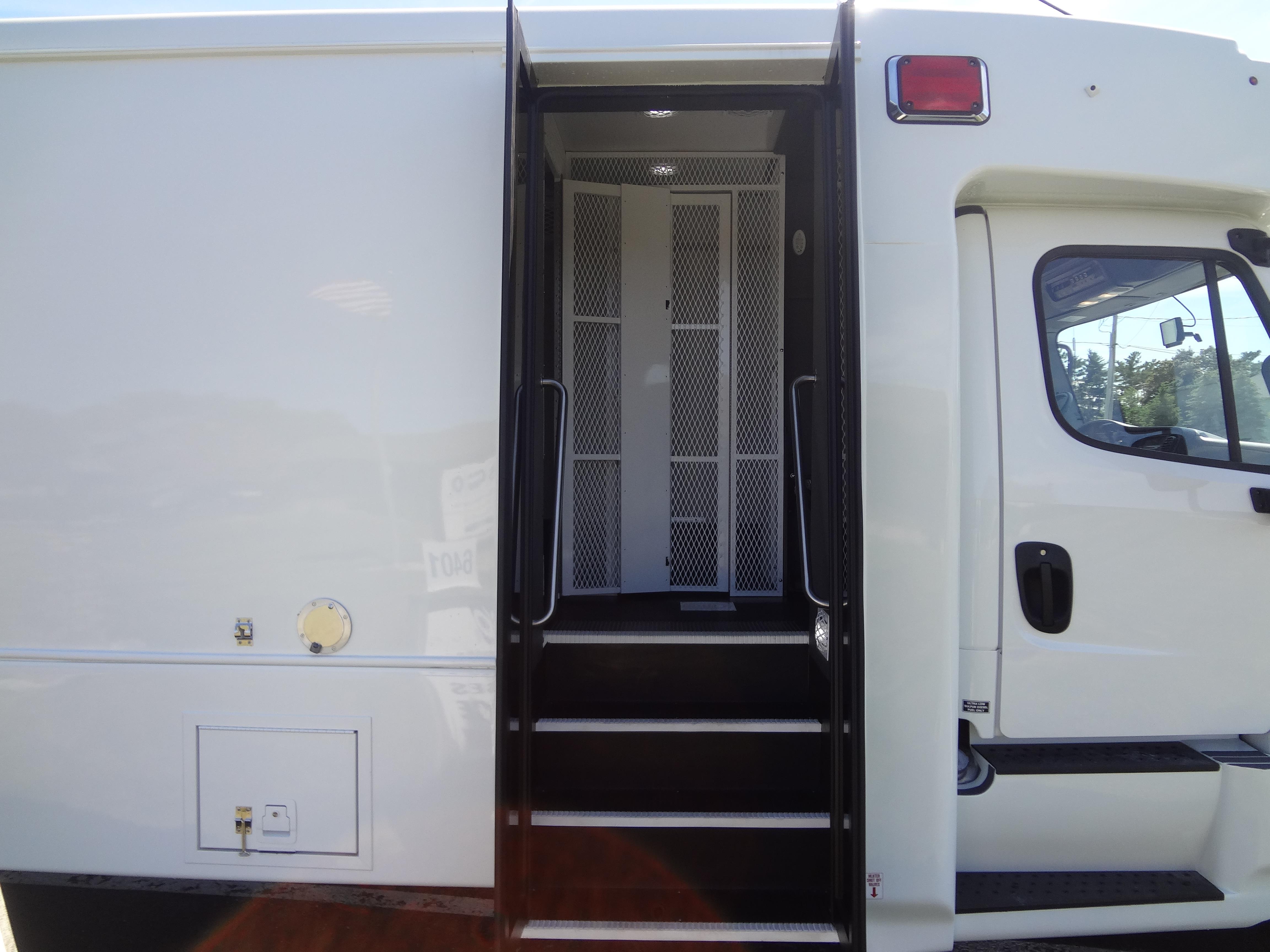

9-ga expanded steel security caging
Integrated keyed-alike deadbolt locking system on all doors
Floor drains throughout for easy cleaning
Multiple Entry Door options – Bi-Fold Bus Doors / RV Sedan doors

Emergency Escape Hatch Security Screening w/ lock
All Lights, Windows & Speakers w/ Security Screening
Disabled Interior Door Handles

Additional Options Available

Interior Camera System with DVR capabilities

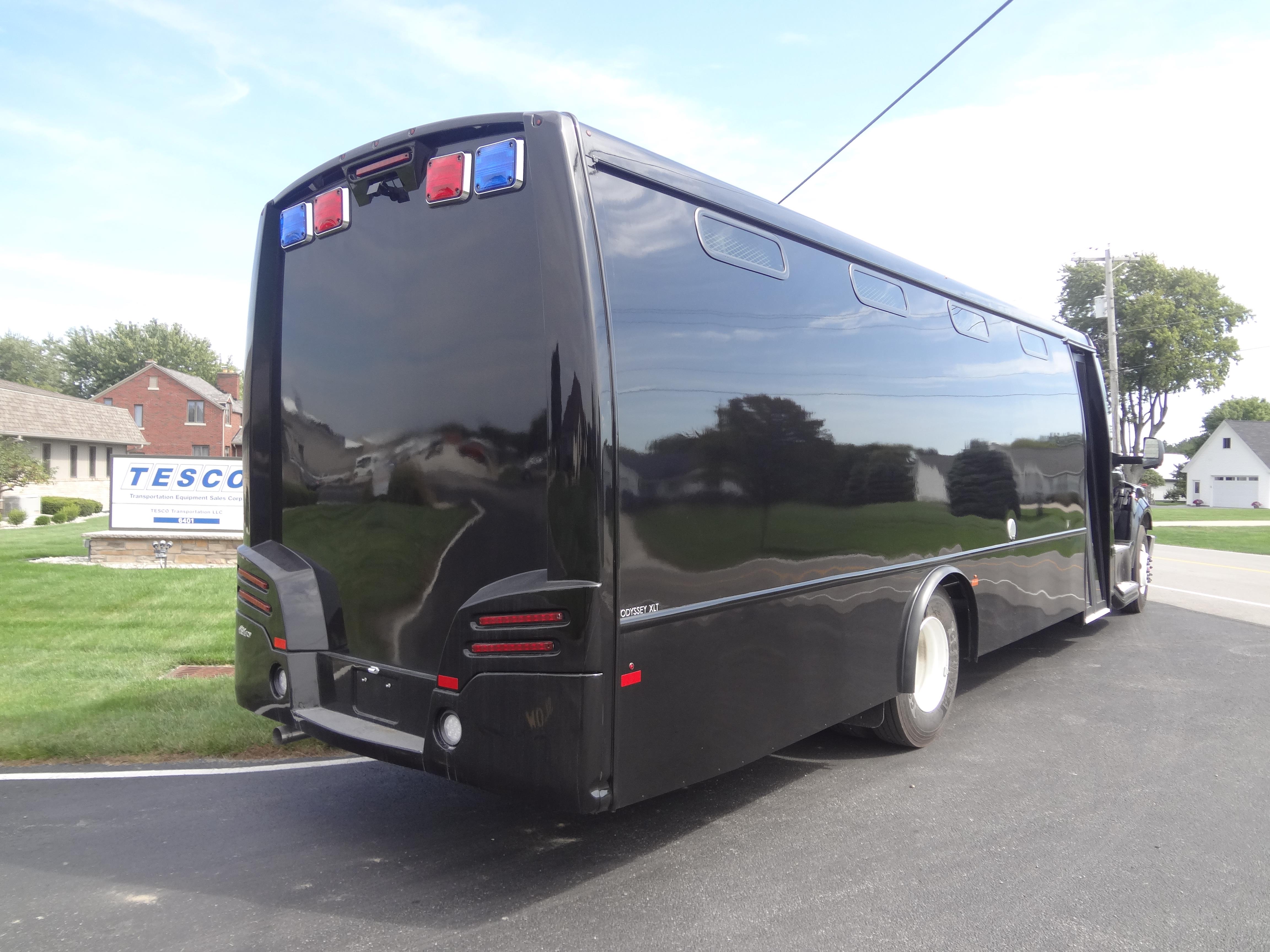

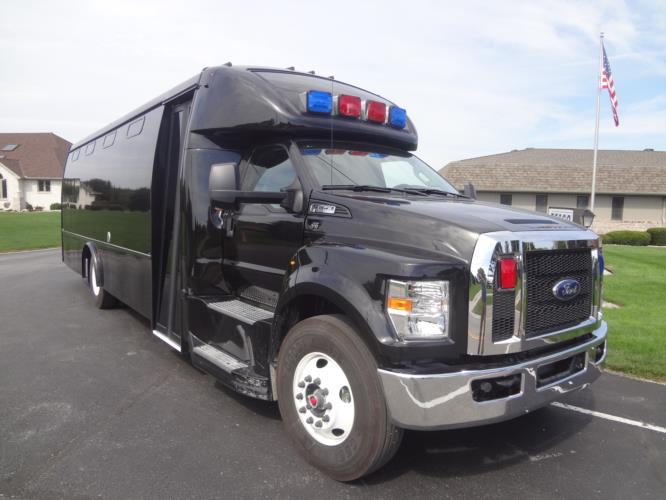

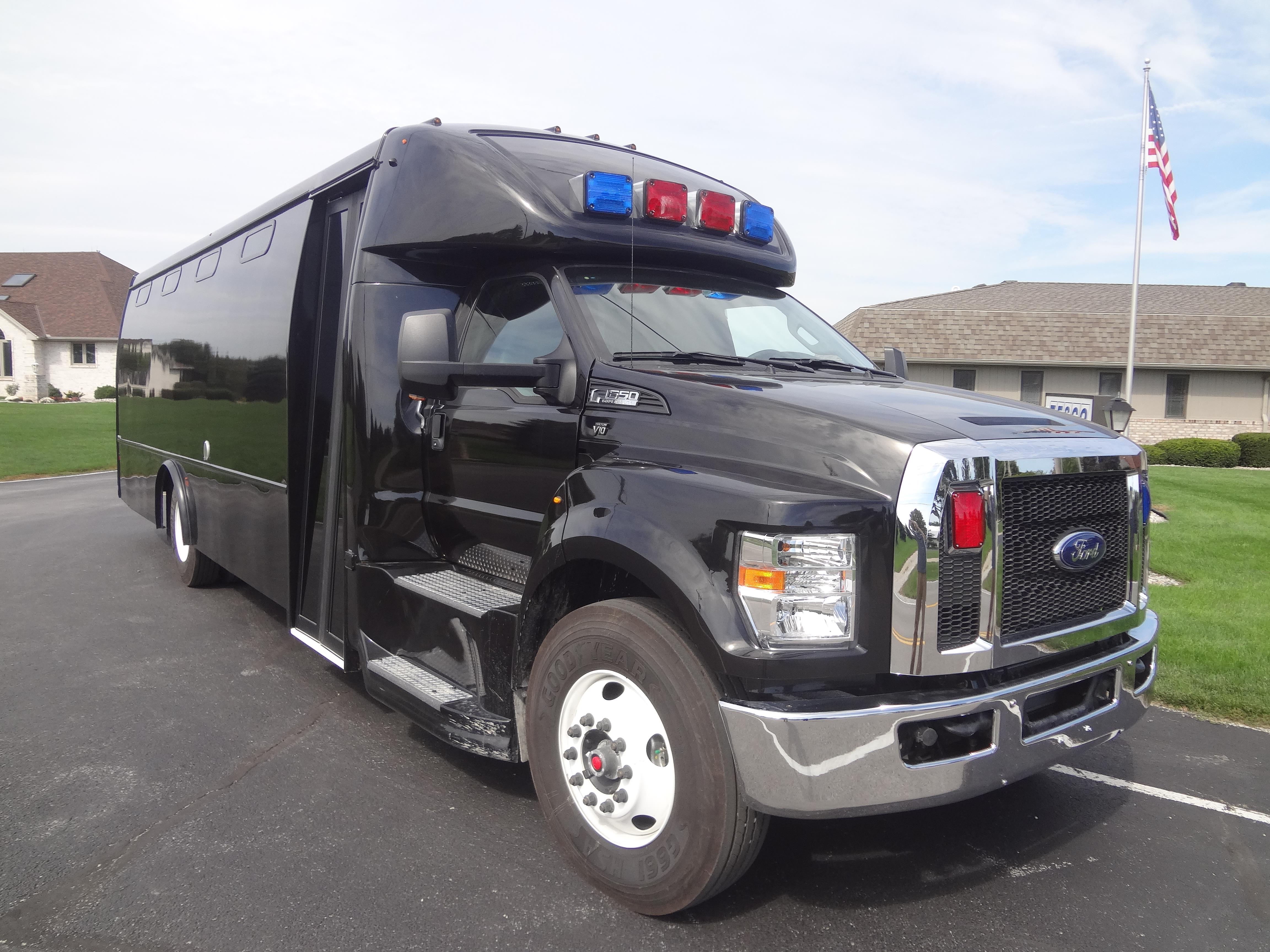

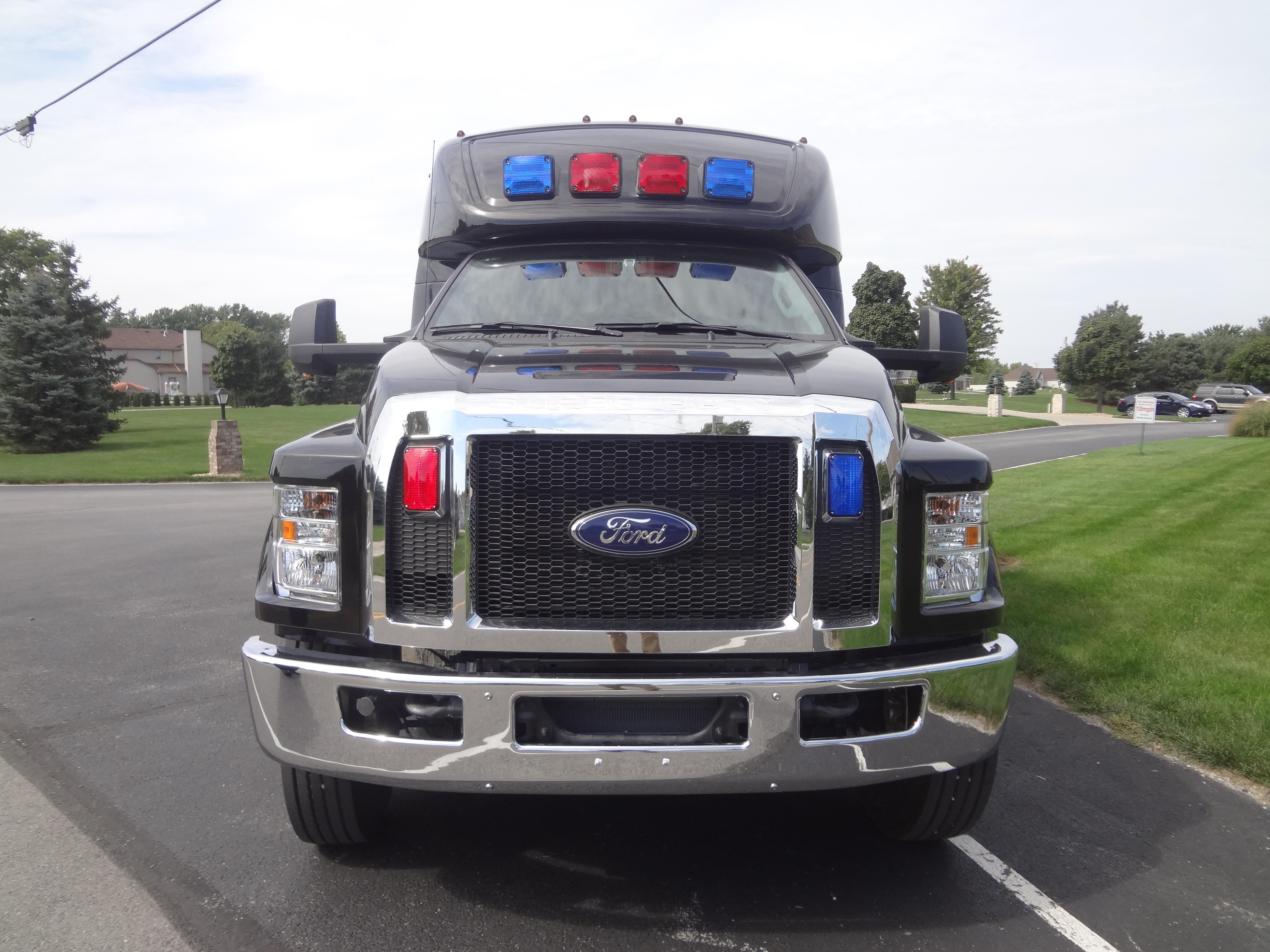

Exterior Emergency Lights (Red & Blue’s)
Secure Rear Restroom w/ Stainless Steel Toilet
Front Located Locking Storage compartment with multiple shelves

Rear guard position behind Cab/Driver
Pistol Lock Box located in Cab or overhead storage compartment
Shotgun Securement Gun Mount
Lexan Shield (spit guard) mounted on Security Caging

Odyssey XL F550/F600 GAS Chassis Specifications

205" Wheel Base
Oxford White Paint
7.3 V8 Gas
10 SPD Transmission
Tires: F550 = 225 BSW AP 19.5 / F600= 245 BSW AP 19.5
4.88 Limited Slip Axle Ratio
40/20/40 Gray Cloth Seats
F550 = 19,500# GVWR / F600 = 22,000# GVWR
Cruise Control

AM/FM/MP3 Radio
350 AMP Alternator
750 CCA,78 AH Dual Batteries
19.5" Gray Steel Wheels
40 Gallon Fuel Tank
Daytime Running Lights
Four-Cab Speakers
3YR/36K Bumper-Bumper Ford Warranty
5YR/60K Powertrain Ford Warranty
5YR/UNLM Corrosion Ford Warranty

Odyssey XL F550/ F600 DSL Chassis Specifications

205" Wheel Base
Oxford White Paint
6.7L Power Stroke V8 Diesel
10 SPD Transmission
225/70Rx19.5G BSW Tires
4.30 Limited Slip Axle Ratio
40/20/40 Gray Cloth Seats
F550 = 19,500# GVWR / F600 = 22,000# GVWR
Cruise Control

AM/FM/MP3 Radio
250 AMP Alternator
750 CCA, 68 AH Dual Batteries
19.5" Gray Steel Wheels
40 Gallon Fuel Tank
Daytime Running Lights
Four-Cab Speakers
3YR/36K Bumper-Bumper Ford Warranty
5YR/60K Powertrain Ford Warranty
5YR/UNLM Corrosion Ford Warranty

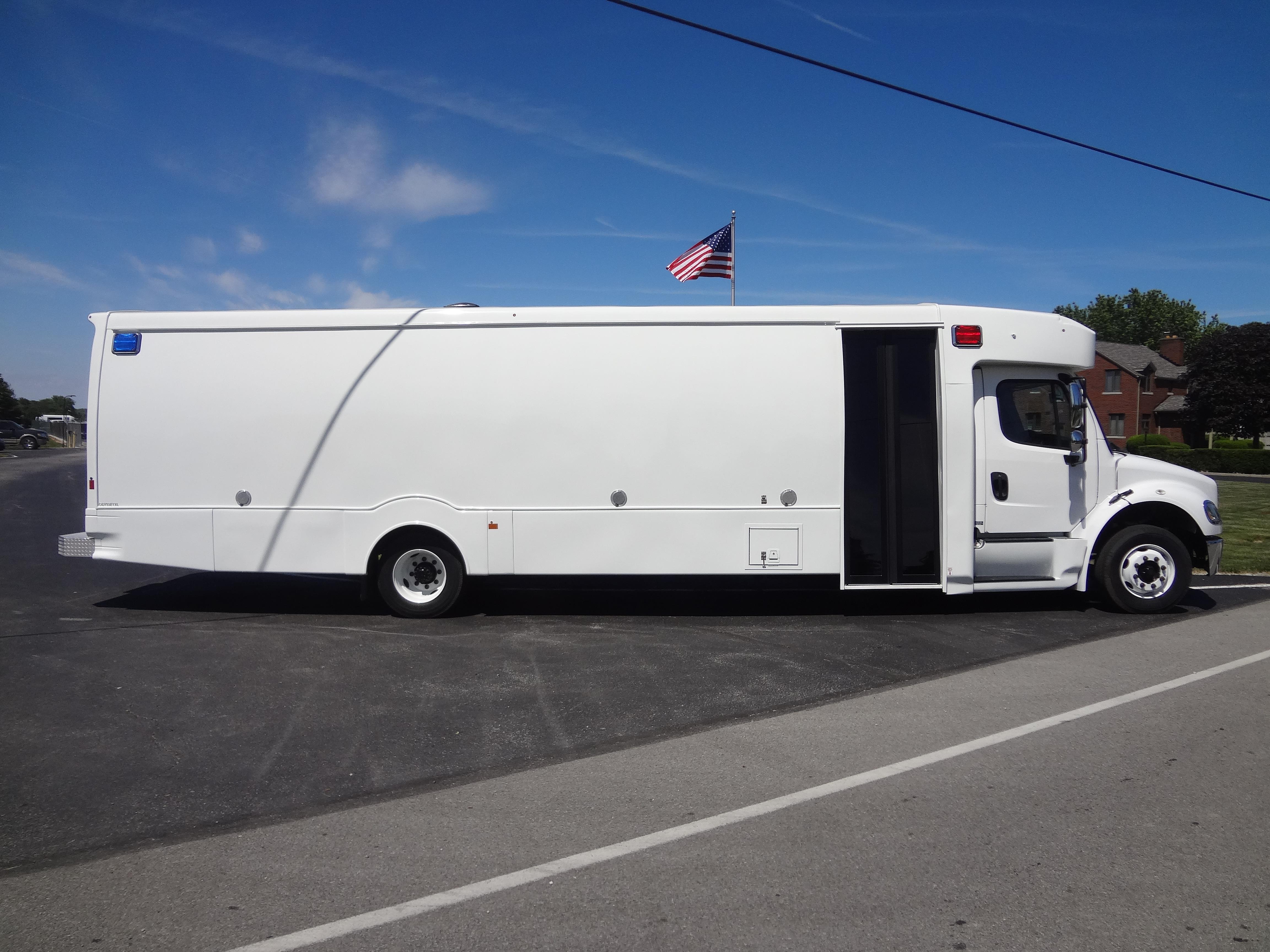

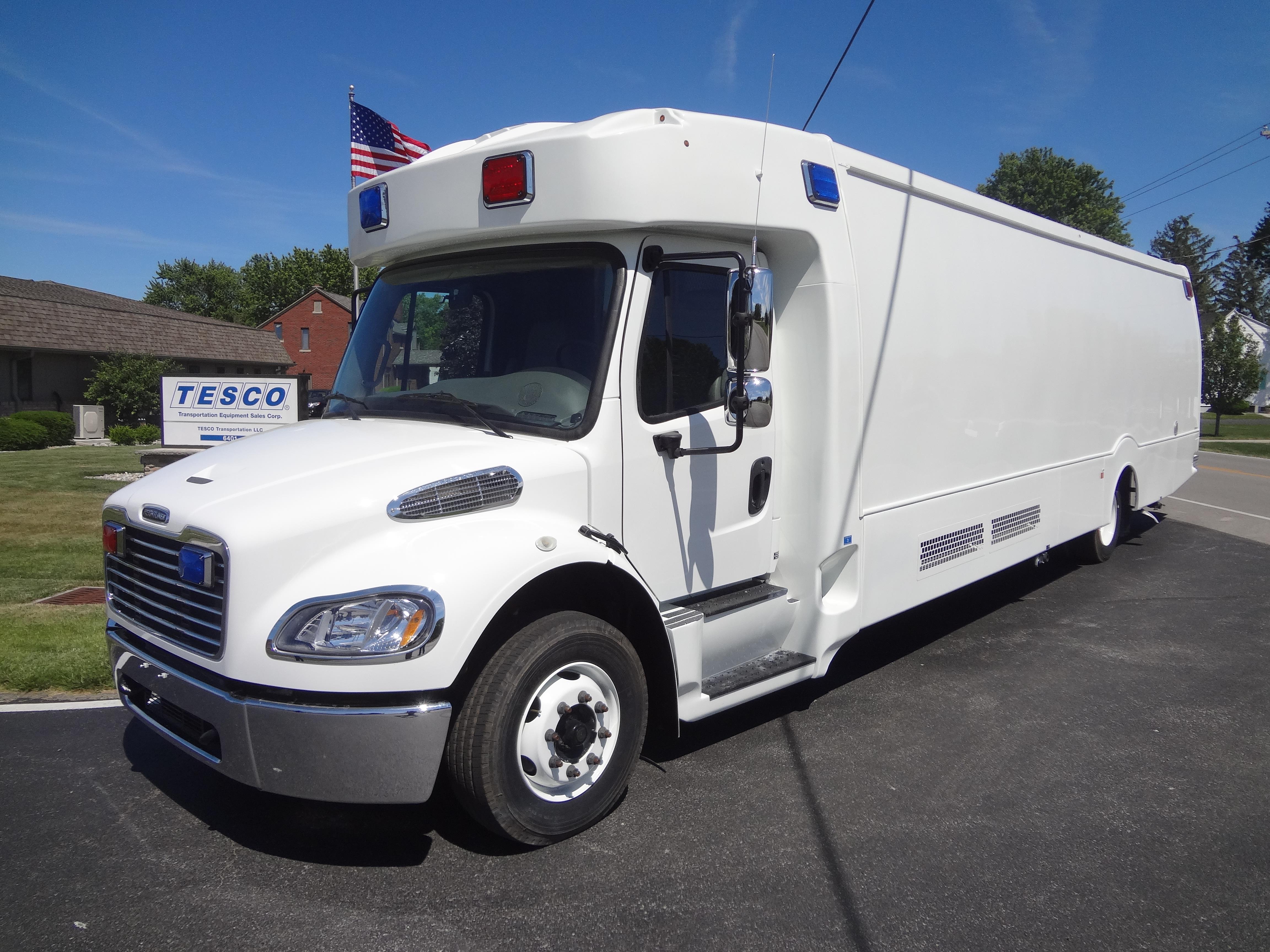

Odyssey XL S2C Chassis Specifications

Up to 300" Wheel Base
Cab-White, Wheels-White Paint
Cummins B6.7 (240-300 HP)
Allison 2200 PTS Automatic Transmission
Hydraulic or Air Brakes
Air Suspensions-Rear
ACCURIDE 29001 22.5X7.50 10-HUB PILOT 5-HAND STEEL DISC WHEELS
4.56 Rear Axle Ratio
Premium HB Ais Susp Dr+Co Seat
26,000# GVWR
Cruise Control

Dash Mounted-OEM Radio
320 AMP Alternator
(3) Group 31,2275 CCA Frame Mounted- Behind Cab Batteries
MICHELIN XZE 255/70R22.5 16 TIRES
Dual 50 Gallon Fuel Tanks
Daytime Running Lights
In Cab Speaker
3YR/36K Basic Vehicle Ford Warranty
3YR/36K Transmission Warranty
2YR/Unlimited Engines-Cummins Warranty

Standard Equipment

Fiberglass front and rear cowls, and skirts
Welded tubular steel roll cage
Welded “G” shape cross members and plates (floor)
Steel wheel wells
All steel primed with a rust inhibitor
1" Polystyrene foam board insulation
FRP interior sidewalls
Steel reinforced fiberglass rear bumper with step (XL and XLT only)
Drive shaft guards
Front and rear mud flaps
CTEC exterior composite sidewalls
One-piece exterior fiberglass roof
Heavy-duty steel powder-coated rear bumper (Odyssey only)
LED running and clearance lights
LED side directional lights
OEM heated, remote mirrors (XL and XLT only)

Velvac exterior mirrors (Odyssey only)
Chassis prep
Undercoated
5/8" Advantech sub-floor
Underbody foam sealed and undercoated
Entrance door built in side of body
OEM driver and co-pilot seats
MPV flat skirts
Flat Floor
Enclosed entrance steps
Angled assist rail at entrance door
Black rubber floor and aisle; floor mat in cab
White fiberglass reinforced ceiling and sidewall panels
Mor/Ryde suspension option REQUIRED on all MPV models (not applicable to FM2 chassis-XLT)

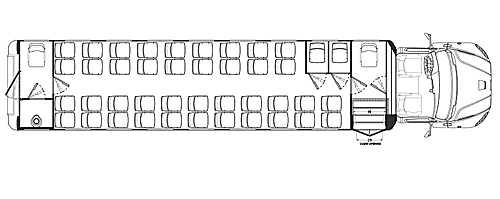

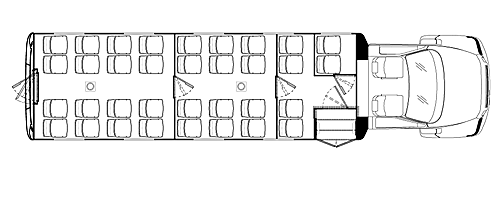

Seating Options

At TESCO Bus, we want to make the process of purchasing a bus to be as easy as possible. Choosing the perfect seat for your bus may seem overwhelming, but we are here to help! TESCO is a distributor for Freedman seats, the most common manufacturer of all seating in the transportation industry. Freedman offers endless amounts of seating types, from low back vinyls to high back recliners (both popular choices amongst our customers). To take a closer look at some of the Freedman seats and products that TESCO offers, click here.
